Build Secure Network Subnet Topology

Overview

This article explains the concept of network subnets and how they are used to organize and secure cloud infrastructure. Subnets divide a larger network into smaller, manageable segments, allowing better control over traffic, security, and resource placement.

Understanding public, private, and data subnets is essential for designing secure and scalable architectures across cloud and on-premises environments. These principles apply to major platforms such as Amazon Web Services (AWS), Microsoft Azure, Google Cloud Platform (GCP), and traditional enterprise data centers.

What is a Subnet?

A subnet (subnetwork) is a logical subdivision of a larger network, such as a Virtual Private Cloud (VPC) or Virtual Network (VNet). It allows you to group resources based on their accessibility and security requirements.

Each subnet resides within a specific availability zone and is associated with routing rules that determine how traffic flows in and out.

Types of Subnets

1. Public Subnet

A public subnet is a subnet that is directly accessible from the internet.

Connected to an Internet Gateway (IGW)
Has a route to the internet (0.0.0.0/0 → IGW)
Resources can have public IP addresses
Allows inbound and outbound internet traffic

Common use cases:

Web servers and static websites
Public-facing load balancers
API gateways and edge services
Bastion hosts (jump servers) for secure administrative access
Content Delivery Network (CDN) origins
Reverse proxies and web application firewalls (WAF)
Email gateways and DNS servers

2. Private Subnet

A private subnet is not directly accessible from the internet.

No direct route to Internet Gateway
Typically uses NAT Gateway for outbound internet access
Resources do not have public IPs
More secure than public subnets

Common use cases:

Application servers and microservices
Backend services and business logic layers
Internal APIs and service-to-service communication
Containerized workloads (Docker, Kubernetes)
Orchestration platforms and middleware
Batch processing systems and background jobs
CI/CD runners and automation tools
Internal monitoring and logging systems

3. Data Subnet (Database Subnet)

A data subnet is a highly restricted subnet used for storing sensitive data.

No internet access (inbound or outbound)
Strict security group and network ACL rules
Accessible only from private subnets
Designed for maximum isolation

Common use cases:

Relational and NoSQL databases (MySQL, PostgreSQL, MongoDB)
Data warehouses and analytics platforms
Caching systems (Redis, Valkey, Memcached)
Search and indexing engines (Elasticsearch, OpenSearch)
Message brokers and data streaming platforms

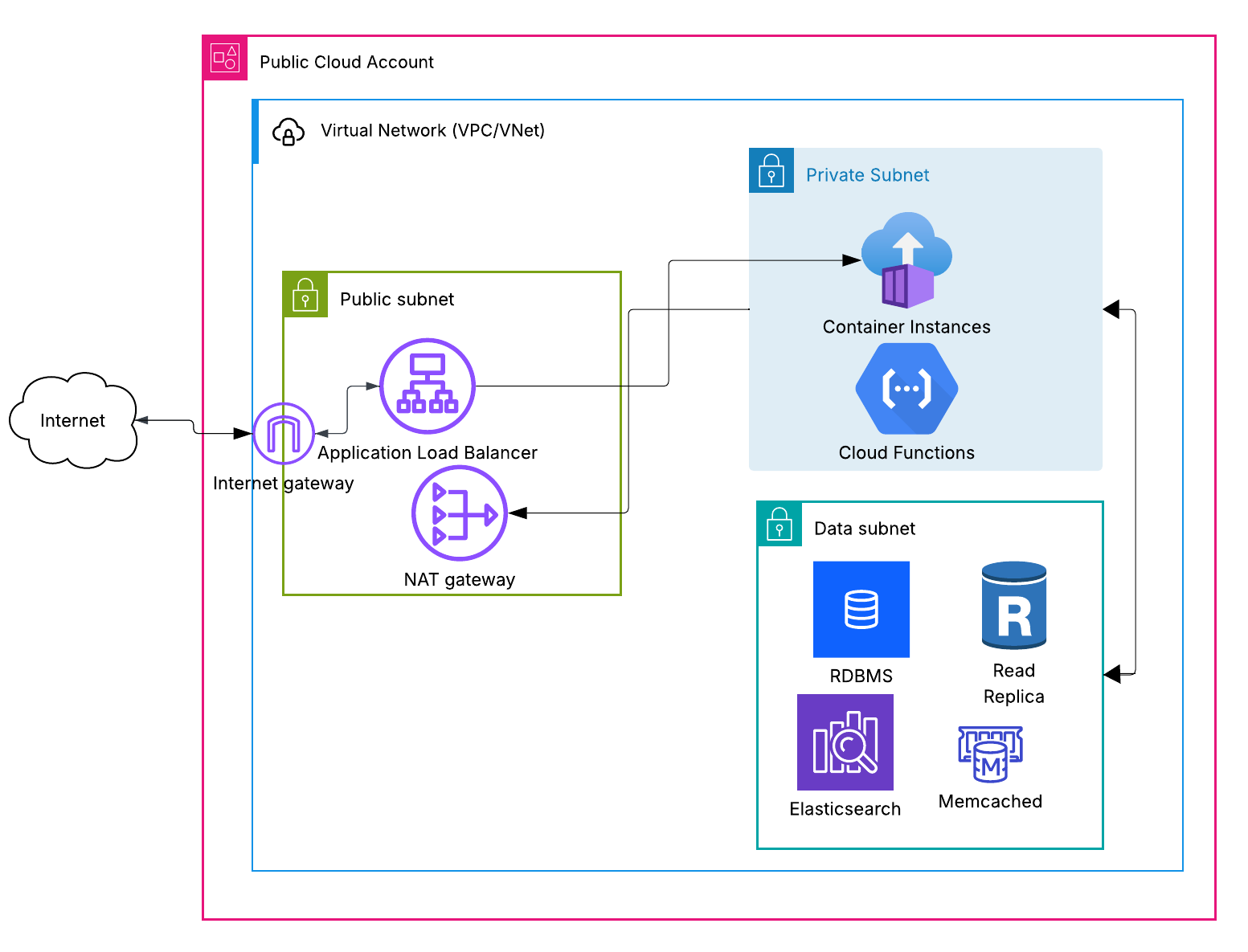

How Subnets Work Together

These subnet types work together to form a secure and scalable multi-tier network architecture.

Public subnet handles incoming traffic from users
Private subnet processes application logic
Data subnet securely stores sensitive information

This layered approach ensures that critical systems are protected while still enabling necessary communication between components.
